Full Line Of Pallet Storage Solutions To Accommodate Any Warehouse Storage Layout

Tunnel Bay
Carton Flow Racks with Netting
Cantilever 6

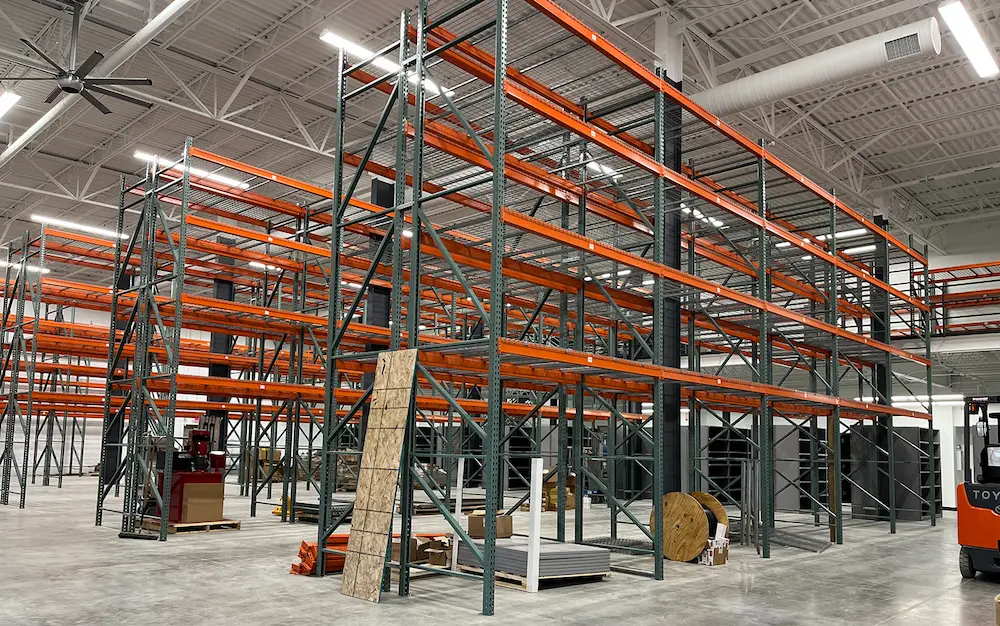

Selective Rack

Teardrop style punching is the most commonly used Selective rack today. Teardrop’s interlocking design allows for 2″ adjustability, quick & easy installation. MWS has Stocking Inventory on hand in most popular sizes and capacities.

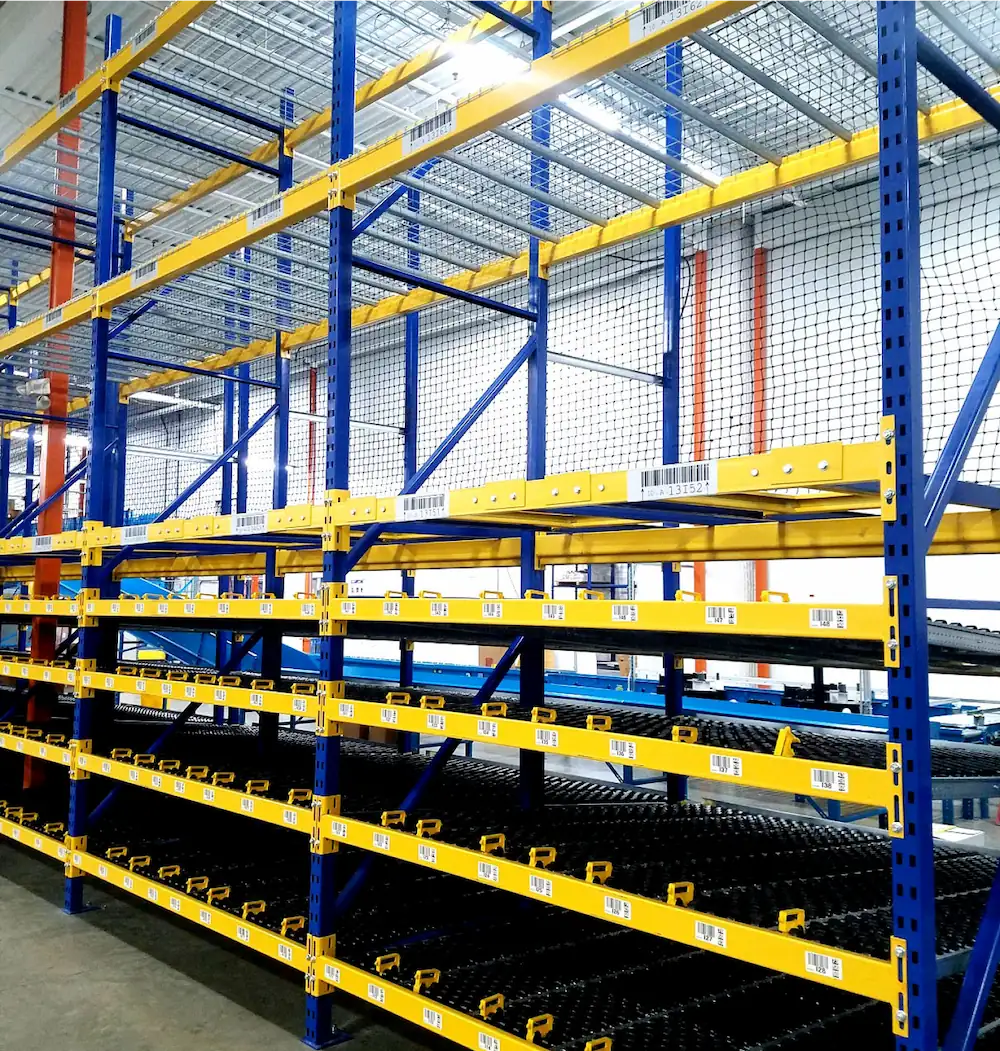

Carton Flow

Long , straight, dedicated lanes designed to fit into pallet rack maintain product organization with consistent box presentation to the picker. Increase storage density by as much as 60% and decrease floor space by a minimum of 22% and reducing labor costs.

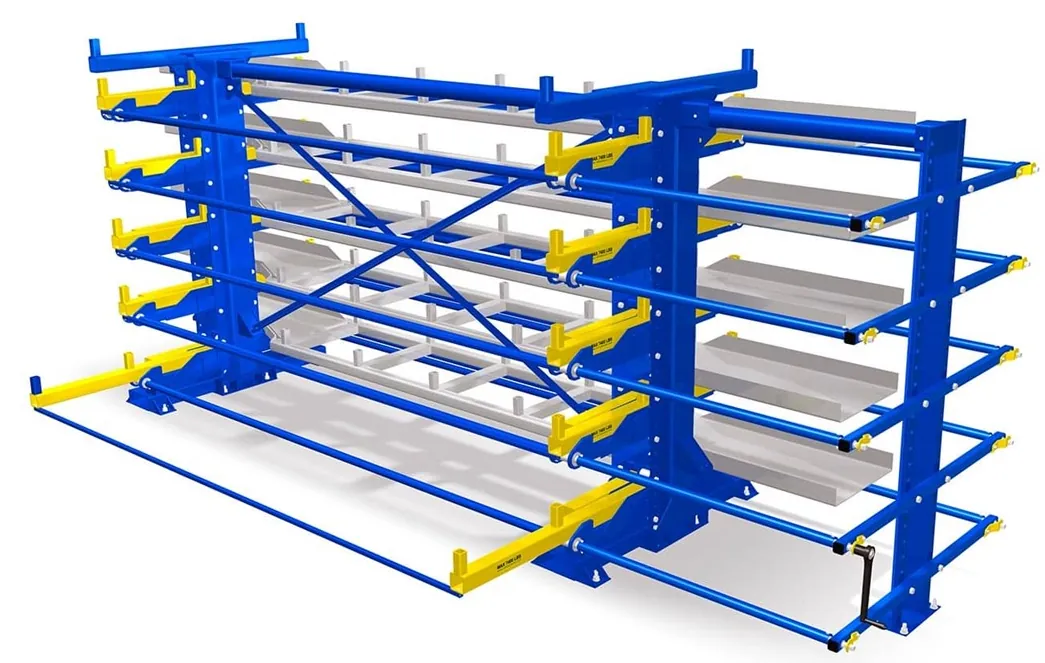

Cantilever

Ideal storage for storing long or heavy items such as: pipe, steel bundles, furniture or lumber. We offer options for small shop storage to large warehouse storage needs or outdoor units with partial roof coverage. Cantilever can be single sided or double sided 500 to 2,000 lbs. per arm level capacity. Arm lengths from 24″ to 50″ and custom spacing to accommodate varying product bundle lengths.

boxes stored on pallet racks in massive warehouse
Warehouse Pallet Flow Rack Storage
Warehouse Pushback Racking Storage

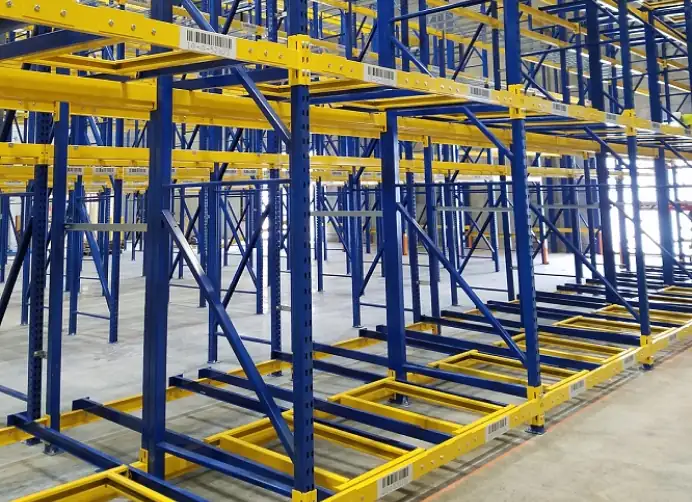

Drive-In & Drive-Thru

Drive In Systems: load and retrieve from the same entry point creating LIFO – Last-in-first-out condition. Pallets are stored end to end eliminating aisles for exceptional dense storage. We can design a system around the turn rate and product selectivity needs of your warehouse.

Drive-Thru Systems: load from one side and pick from the other creating FIFO – First-in-first-out condition. Drive-Thru is generally low cost bulk storage and natural product rotation.

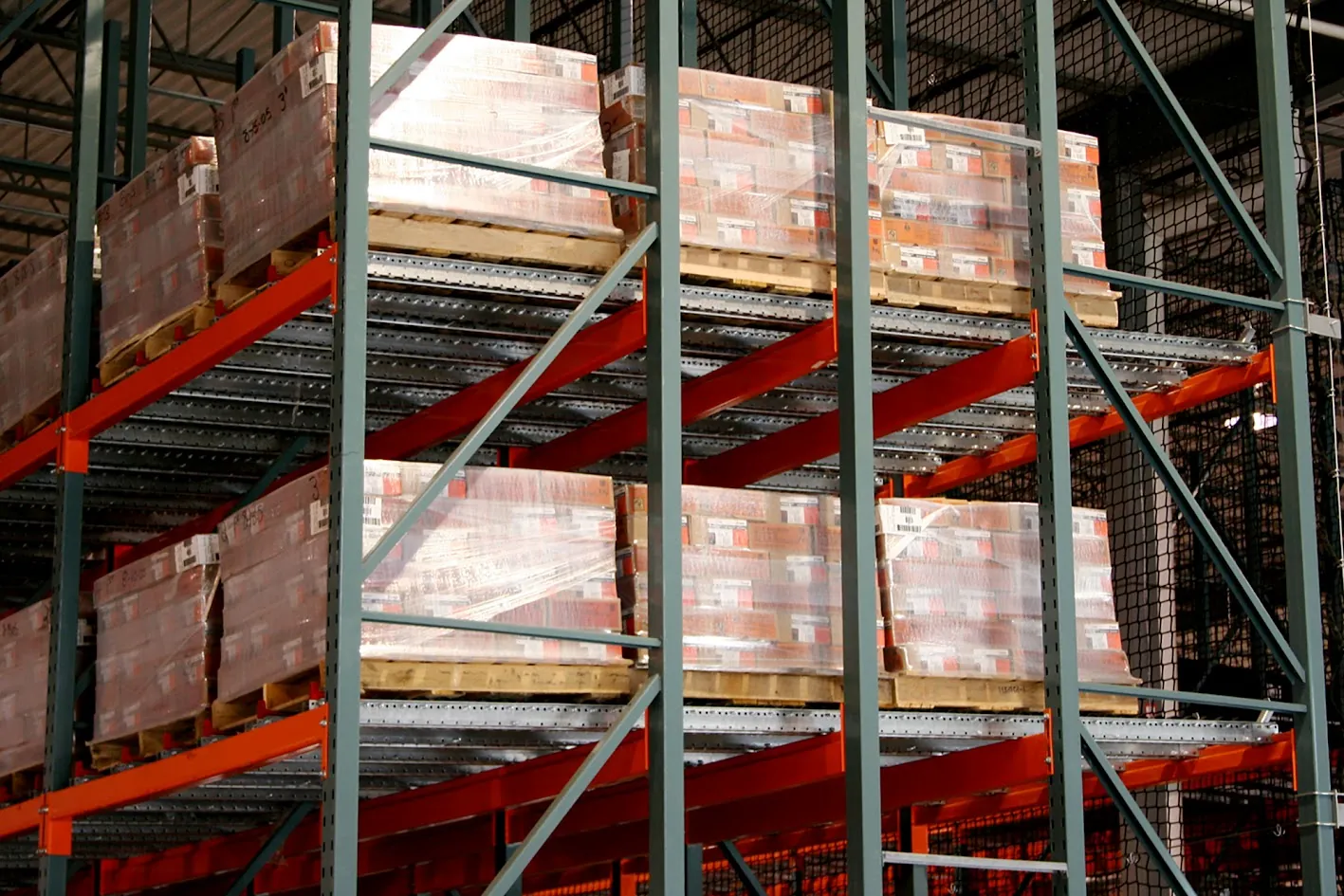

Pallet Flow

Heavy-duty skate wheel lanes are installed in pallet rack set on a slope which allow palletized loads to flow forward for picking. The high-density storage configuration utilizes less aisle space and the forklift never enters the racking system. This design works in ambient and freezer environments.

Push Back

These systems work by placing palletized loads on a series of nesting carts fed forward by gravity on sturdy structural steel rails. The first pallet rest on the top cart, second pallet pushes the pallet backwards, additional pallets rest on nested carts and continue pushing product back. Multiple pick facings for variety of palletized SKU’s can be stored and retrieved in any particular lane the operator needs to access.

Rack Repair
Structural
PickModules

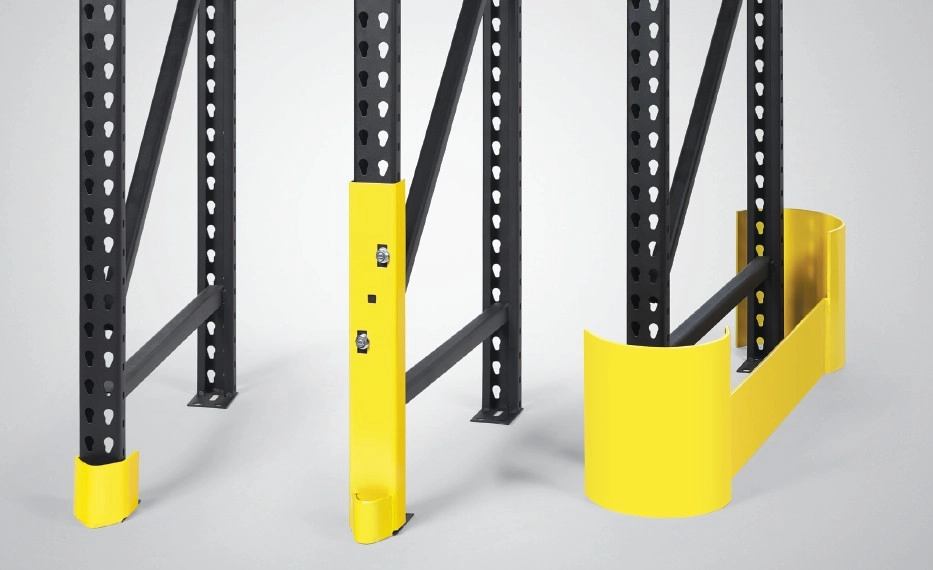

Rack Repair & Protection

We have some of the most versatile rack repair solutions available in the market today. We offer walk through inspections, maintenance programs, installation in Dry or Cold storage facilities for all types of pallet rack, roll-formed or structural.

Structural

Structural Rack gets is it’s name from “Structural Steel”. C-Channel design columns and load beams for added toughness often favorable in Cold Storage facilities. Structural typically offers more durability at the impact points to help prevent forklift abuse.

Pick Modules

Pick modules can be designed for both palletized product and full case storage and retrieval. 2 Level systems are very common but engineering can design multi-level systems to fit any application. Conveyor is often Integrated to the Pick Module to transport product to a from the picking locations.

Start Your Custom Quote
