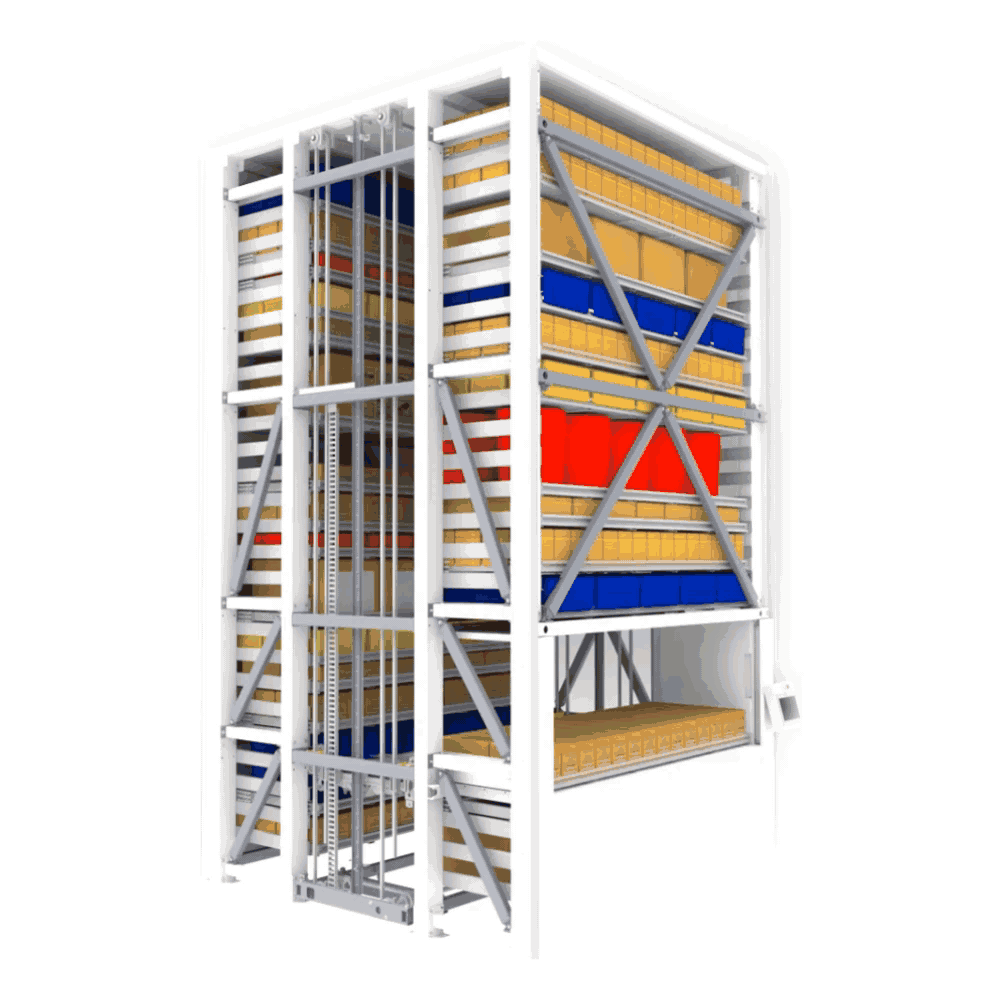

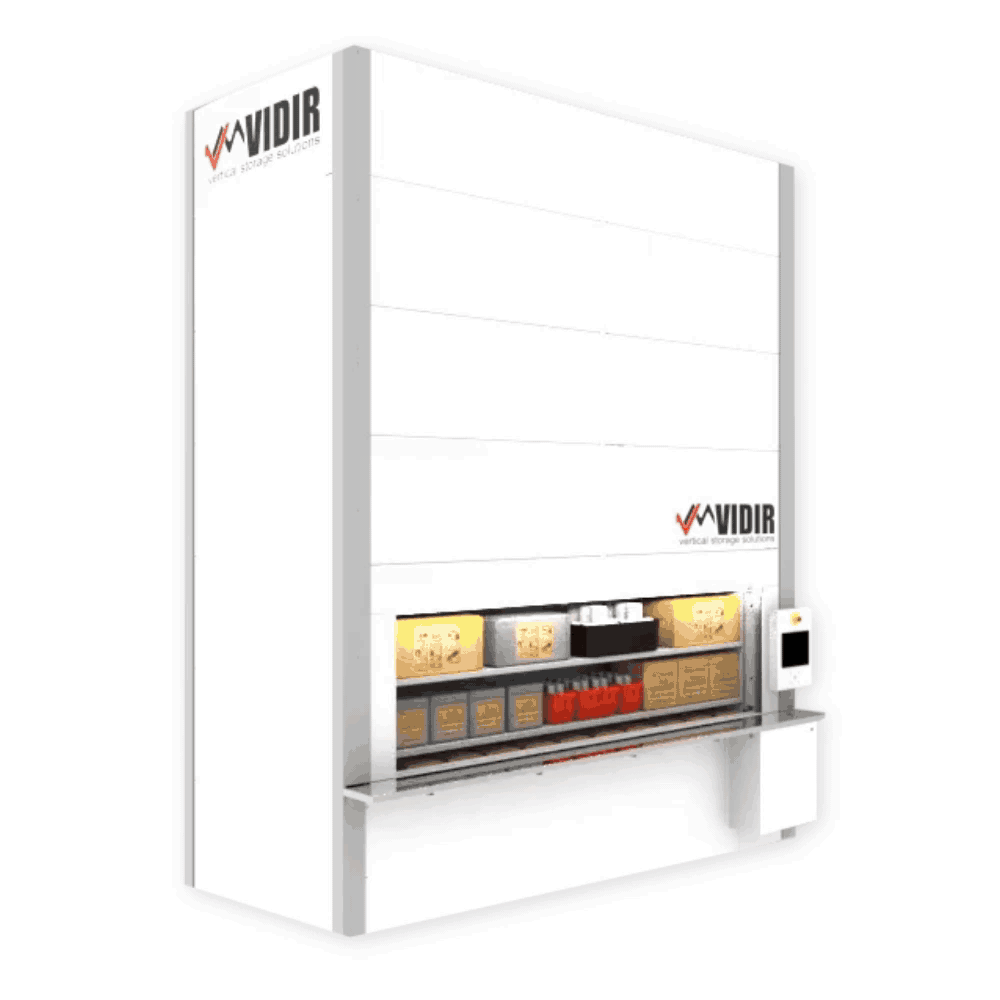

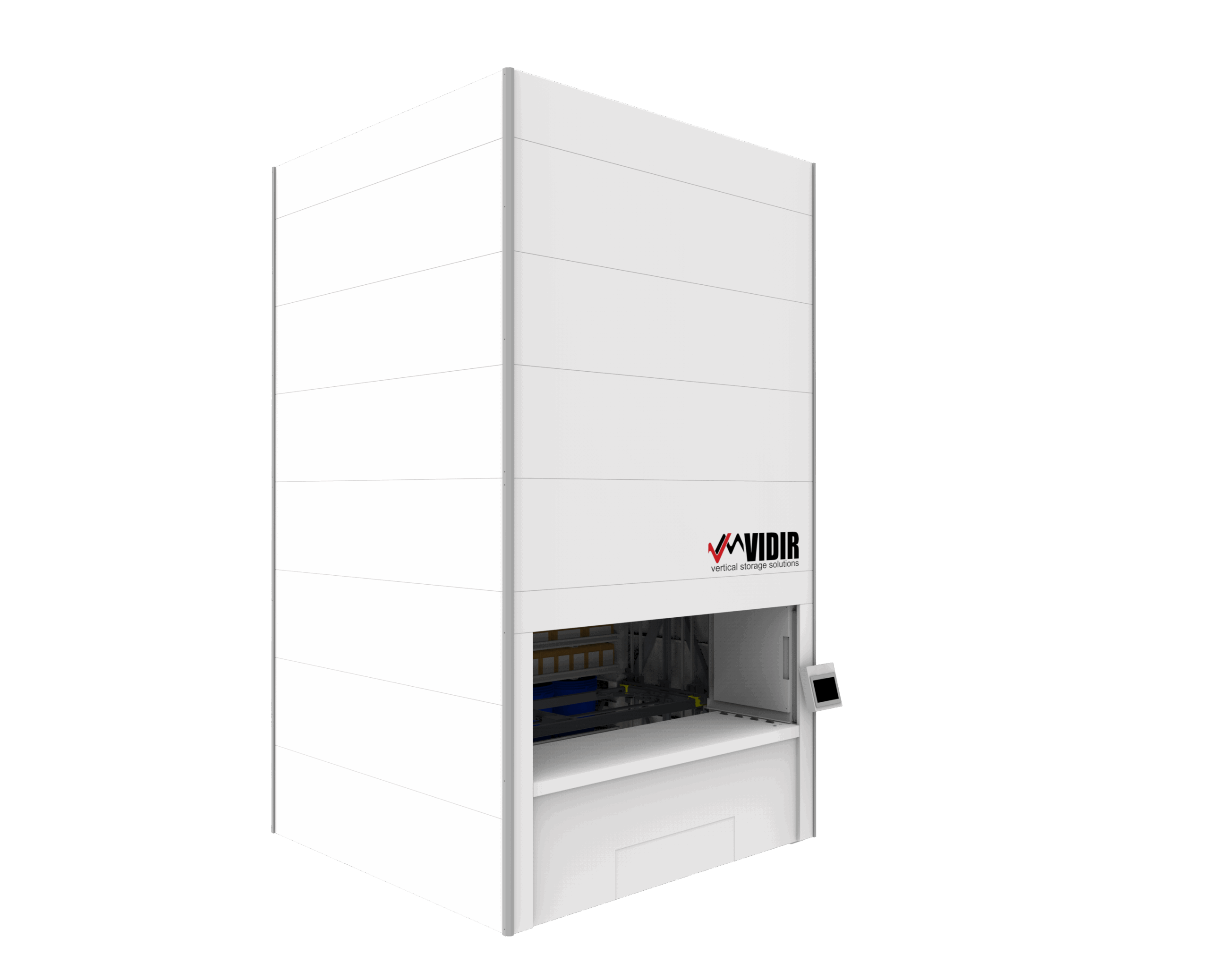

Vertical Lift Module (VLM)
MWS has a great deal of experience with selling and installing VLM machines, our start in the industry in the 80’s & 90’s with White System Carousels and eventually into the VLM world, Servicing across the U.S. NOT just limited to the state of Iowa!
VLM machines reduce the storage footprint greatly by squeezing Out the air and wasted cube shelving often realizes. We offer Two drawer depths – 25.5” & 32.5”, three drawer widths – 122”, 146”, & 170” with drawer capacity up to 1,500 #.

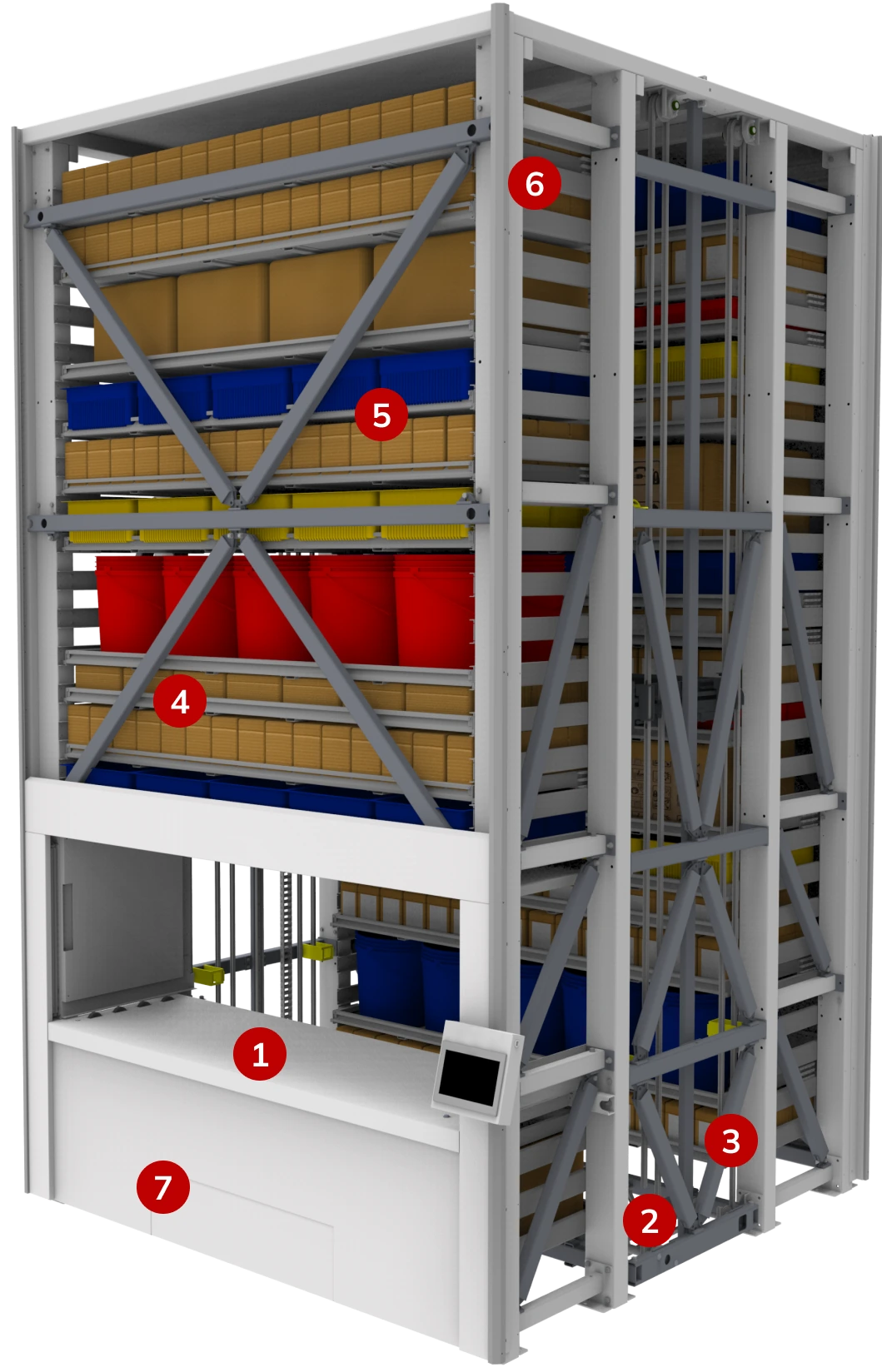

Features & benefits
Ergonomic Access
Pick and Stock items at a comfortable, ergonomic height.
Industry First Servo Motors
Offers higher velocity and accuracy, along with Best in Class 10 HP lift capacity.
Chain Drive
For Best in Class performance, durability and safety.
One Piece Tray
Sturdy steel construction. Available in up to 1500lbs capacity.
Variable Tray Spacing
Automatic height sensing allows tray to be stored efficiently, maximizing available space.
Modular Design
Add and Remove trays as needed to maximize storage.
Front Facing Maintenance Access
Provides quick and easy maintenance access, and Eliminates multi-unit downtime during repairs.
Auto Learning
Faster setup, along with easy and dynamic resets.
Vidir Remote Service
Provides Software Assistance, Troubleshooting, and Training by Remote Access.
Full Inventory Control System (VIP)
Allows detailed tracing and control for parts and data, with a simple and quick setup.
Vidir Rapid Install
Making use of unique architecture, providing industry leading installation timelines.
Partnered with Schneider Electric
Worldwide access to local parts supply, standardized, and thus faster to service.
Dual Redundant DC Power
Keep full functionality in case of power supply failure

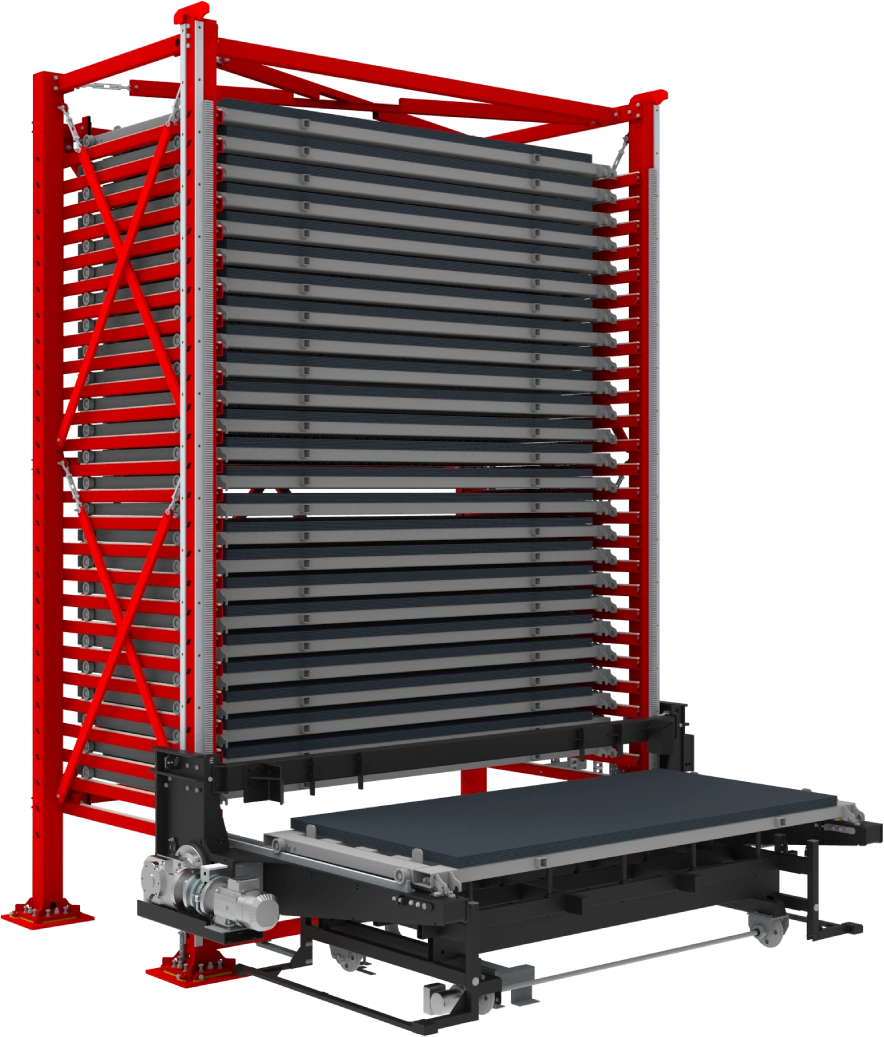

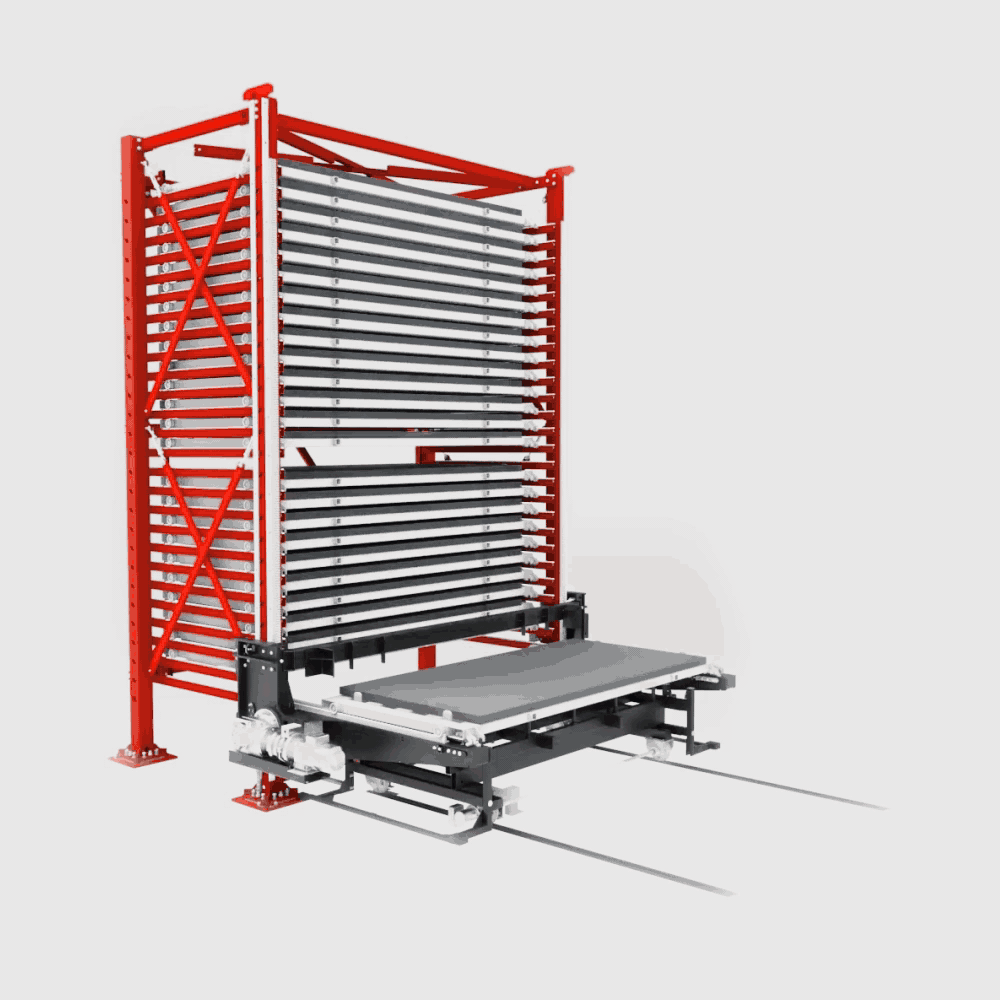

Sheet Steel Storage
using your overhead crane
Two Options are available for Sheet Steel storage racks. We offer Fixed or Hinged Rollout Frames that are flexible and modular in design that can be reconfigured At a later date. Reduce set-up time and labor hours by eliminating the need For a forklift to move and find material during change-over. Unclutter floor Staging areas with various sheet steel groups lying around the floor path.
5 Models are Available from: 4’ x 4’ to 12’ x 6’ (width by depth)
4’ x 4’ – 8’ x 4’ – 10’ x 4’ – 10’ x 5’ & 12’ x 6’
Fixed Frame Racks: Occupy the required floor space at all times and is always ready to roll a drawer into picking location. Obviously, more floor space is consumed with the fixed frame but options endless.
drawers extend 100%
Hinged Frame Racks: Consists of two swing-out sections hinged
left and right and when not in, use the section close up. When closed,
the hinged frames secures your materials and protect against unauthorized access. Drawers extend 100%.

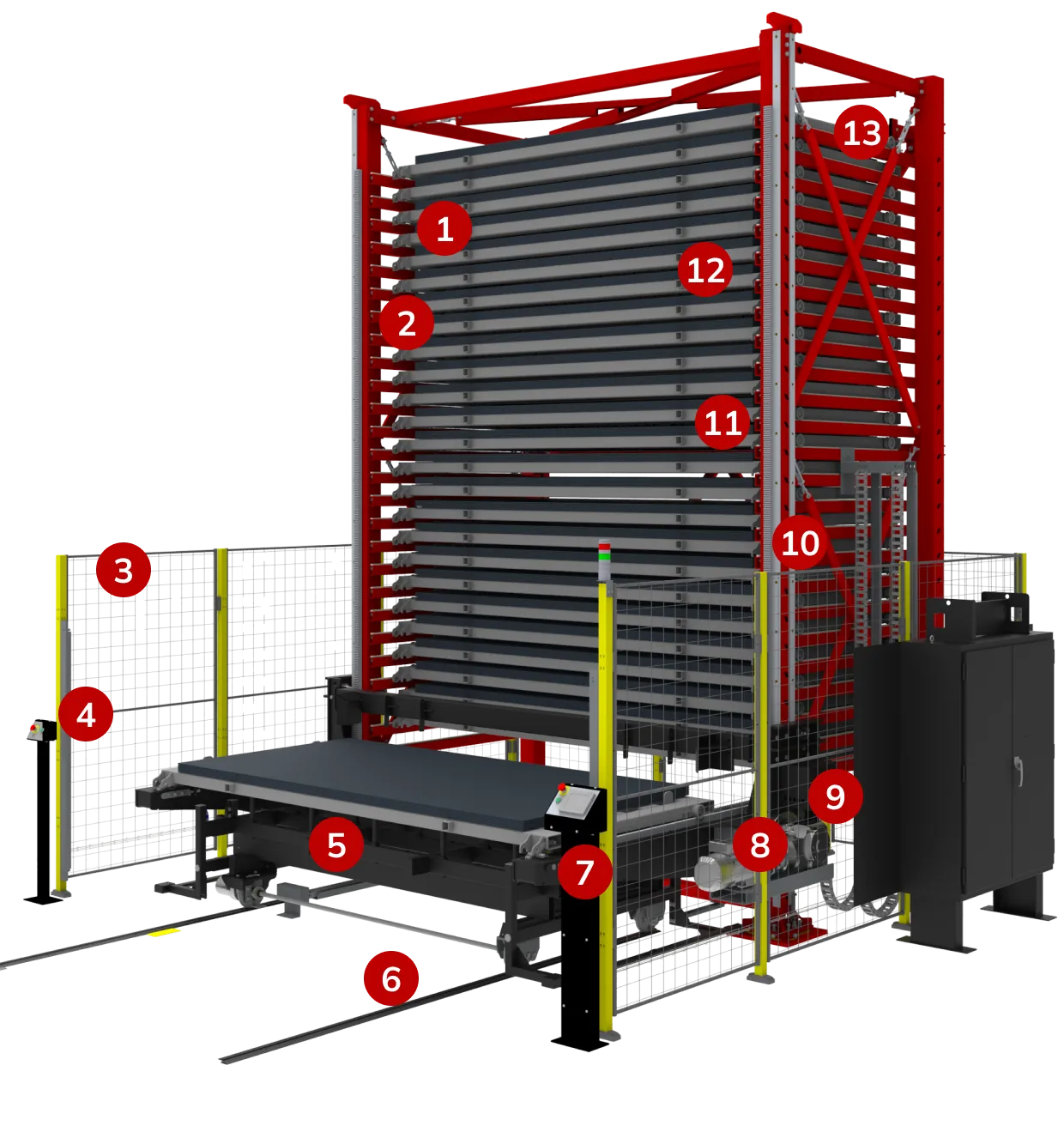

Features & benefits
Load Size
Fits standard 5’ x 10’ sheets, up to 5,000lbs.
Spacing
3.5” spacing up to 32 spaces or 5” spacing up to 27 spaces.
Access Restriction
Fencing around the perimeter and light curtains provide safe operation.
Emergency Stops
Located left and right of the towers.
Loading Table or Motorized Cart
For easy loading and unloading.
Safety System
Designed to SIL3/ C14/PL e.
Controls
VLS operation controls featuring pallet selection and movable cart control.
Motors
2 x SEW KAF87 5hp motors & 1 x SEW KAF47 3/4hp
Rack & Pinion Drive System
Precisely aligns and balances lift automatically.
Braking System
Features a process brake and a redundant brake engaged with the safety system.
Overload Sensing
Lift returns to the home position when overloaded.
Pallet Safety
Each pallet is individually locked in place until released by the elevator.
Overhead Space
Fully maximizes overhead space for storage to recover valuable floor space.

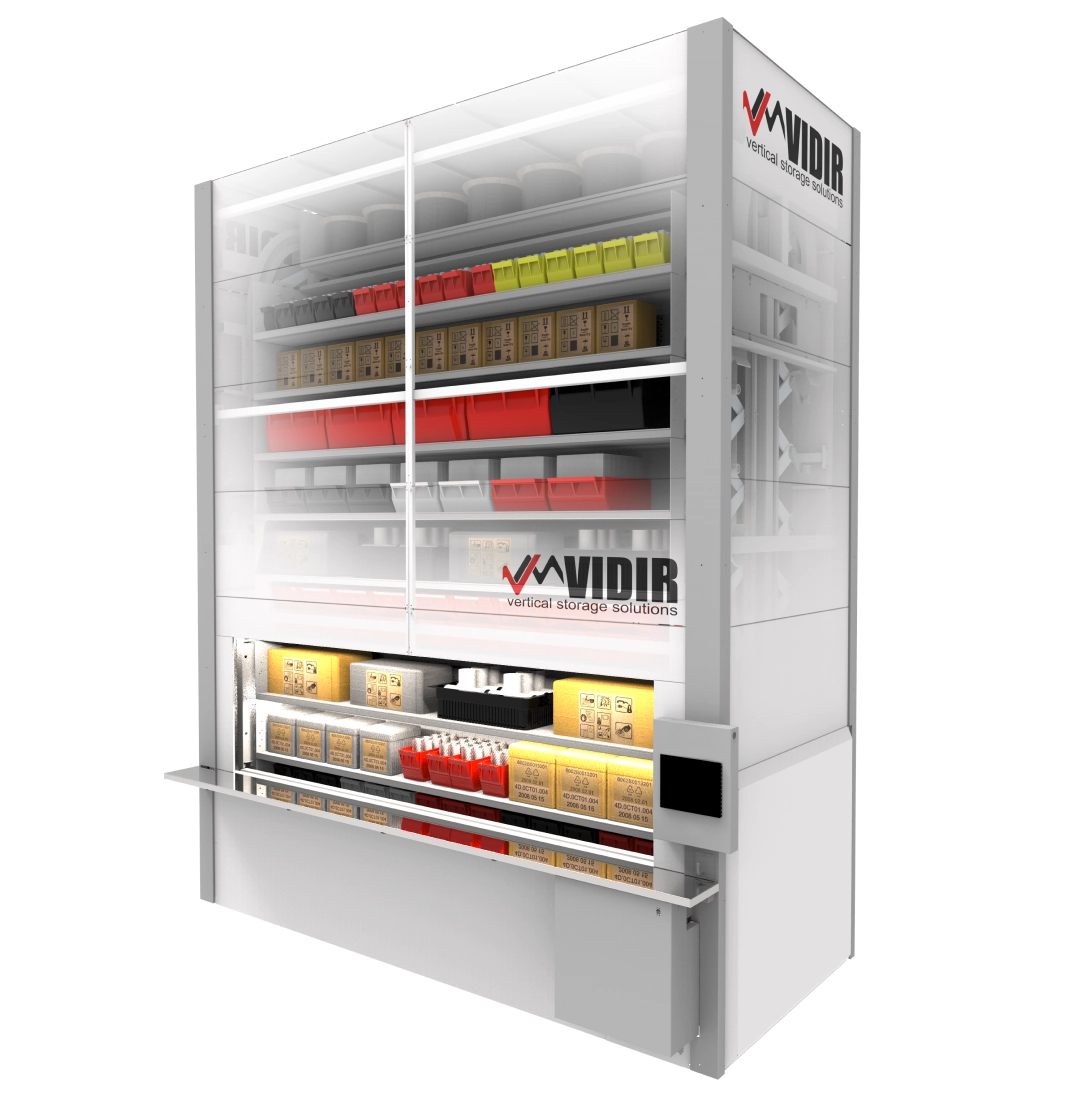

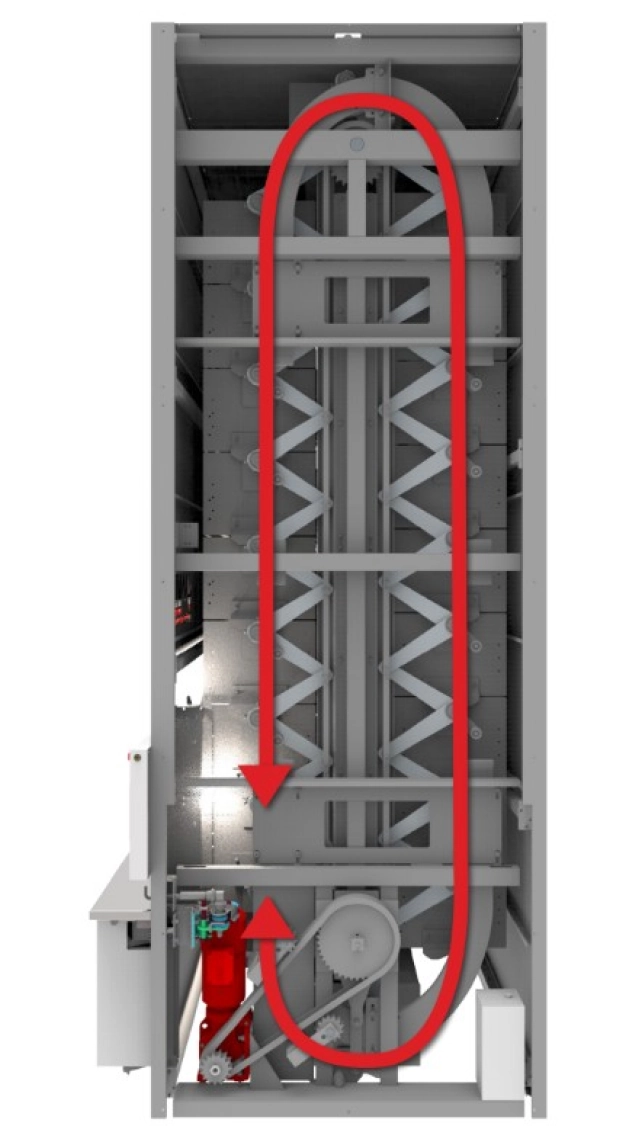

Vertical Pan Carousel
The Vidir Pan Carousel is a fully automated vertical storage system that brings products directly to the operator at an ergonomic height, improving productivity and safety.
By utilizing overhead space, it can recover up to 80% of your floor area—ideal for operations looking to maximize storage capacity without expanding their footprint. The system boosts inventory accuracy, enhances security, and simplifies access to stored items.
With intuitive controls and seamless integration with ERP and WMS platforms, the Vidir Pan Carousel delivers a smart, connected storage solution built for modern warehouses.
Features & benefits
Recovers average of 80% of your floor space
Can operate and track inventory as an individual database or integrate with enterprise level ERP systems
Increased workplace safety
Improved productivity with more efficient SKU picking
Improved security with optional gates, password protection, and access logs
Access to stored products at all times with the emergency rotation feature
Flexible carrier configuration options to meet changing inventory needs

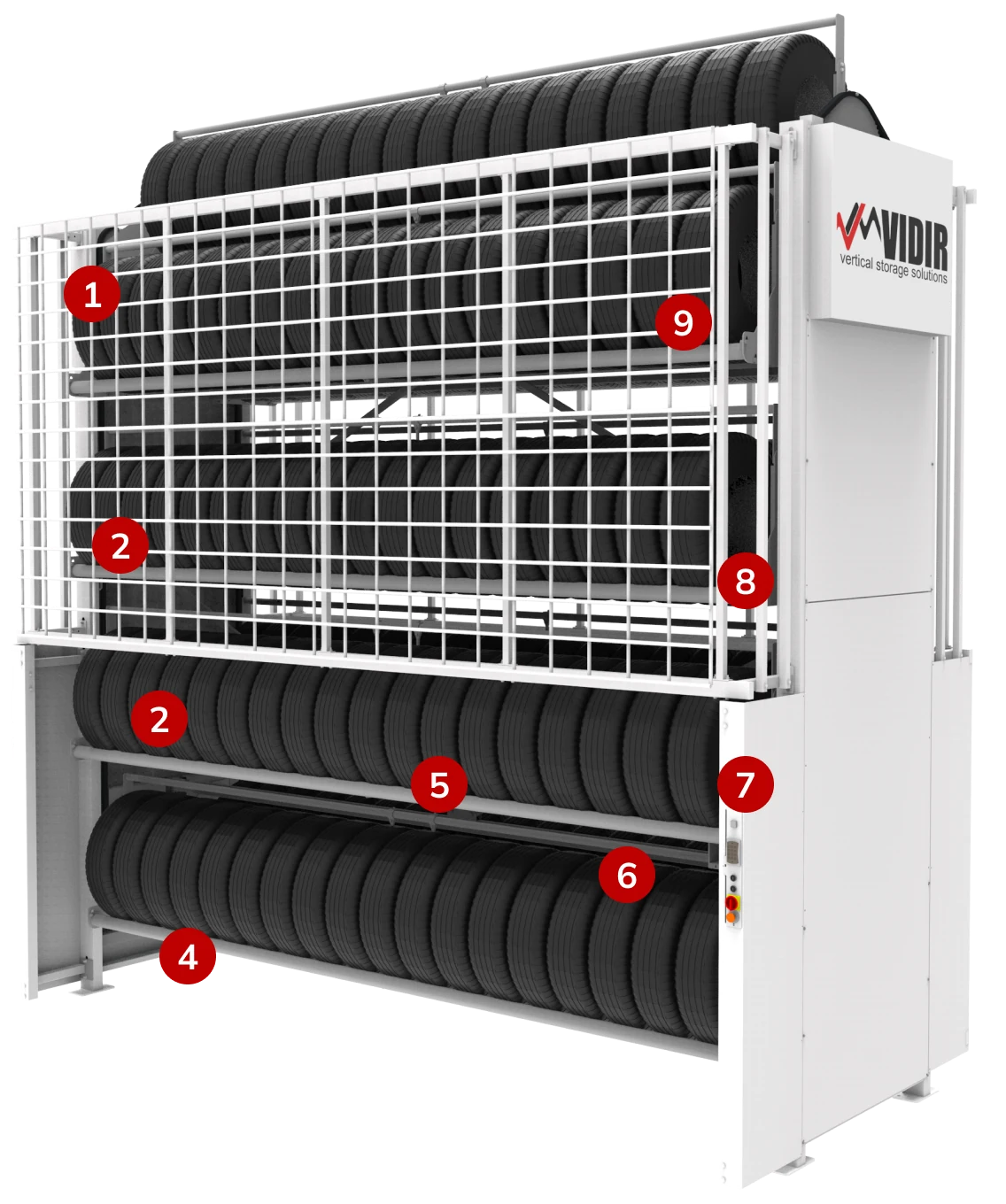

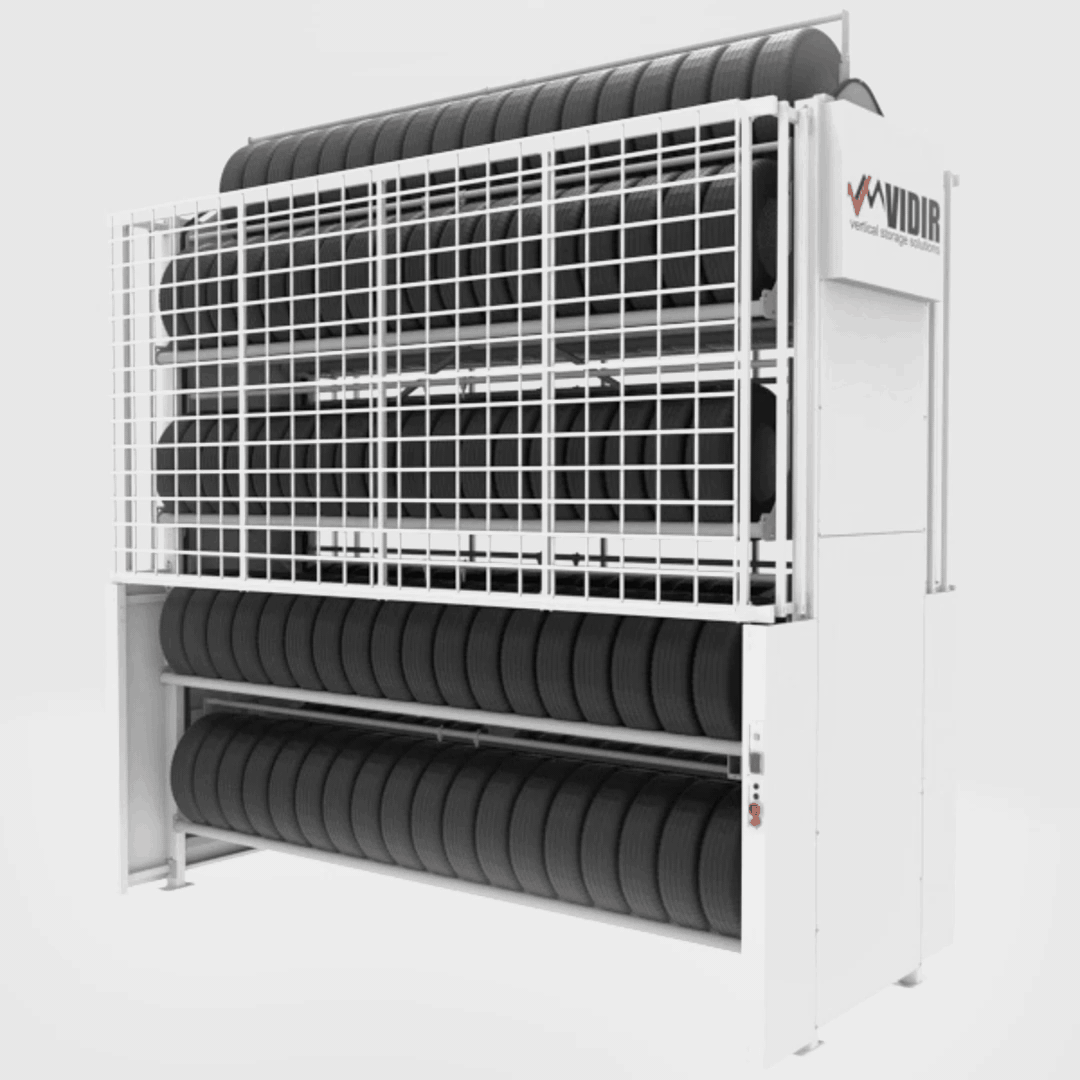

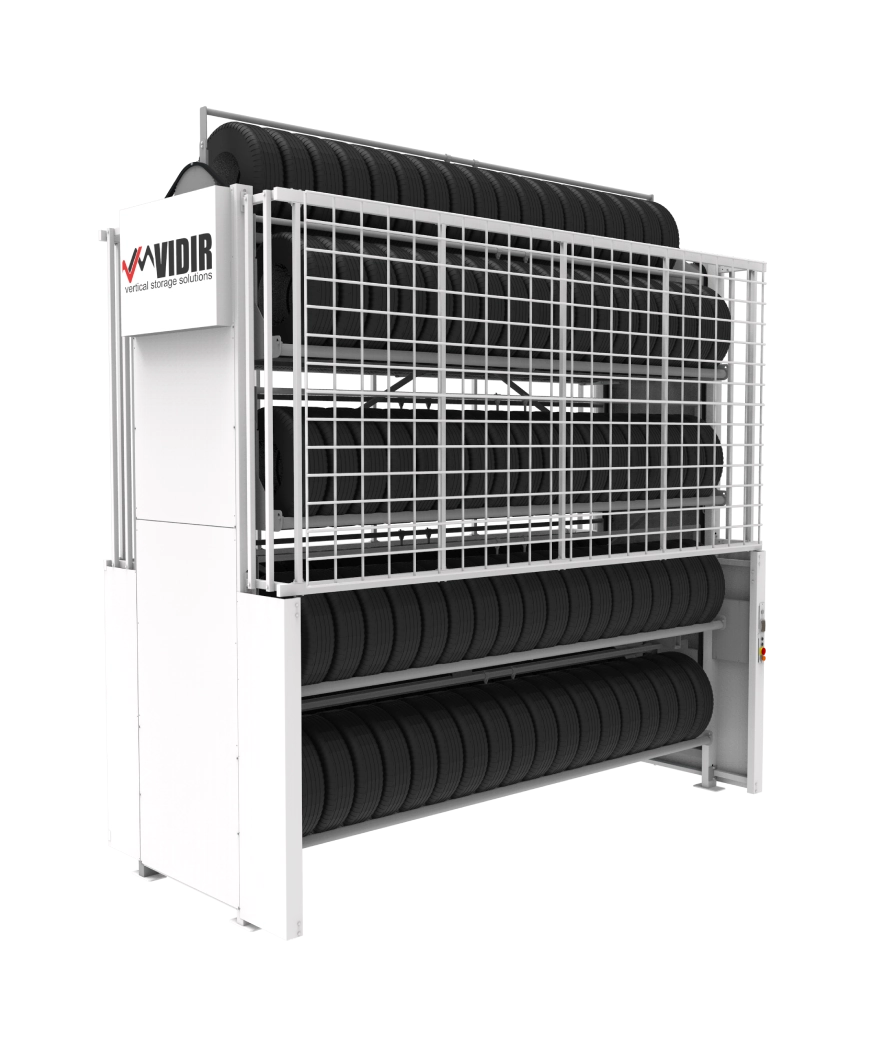

Vertical Tire Carousel
The Vidir Tire Carousel is a motorized vertical carousel designed for high density storage and retrieval of tires. The storage system will maximize overhead space to save up to 80% of your floor space with every tire accessible at the touch of a button.
The Tire Carousel delivers tires directly to the operator at an ergonomic height reducing chances of injuries from lifting, bending, and pulling at sub-optimal positions.
Features & benefits
Overhead Space
Fully maximizes overhead space for storage to recover valuable floor space.
Tire Sizes
Accommodates tires up to 44” in standard models.
Carrier Design
The carrier is made up of 3 pipes in a triangular configuration.
Small Footprint
High density storage within a 60ft2 footprint.
Ergonomic Design
Wire bays rotate up and down to deliver spools to the operator at an ergonomic height.
Controls
2 x SEW KAF87 5hp motors & 1 x SEW KAF47 3/4hp
Standard push button controls
Precisely aligns and balances lift automatically.
Security
Enhance security with a keypad access system and an optional security gate for added protection.
Tire Style
Designed to store tires both with and without rims.
High Density Storage
Up to 352 tires can be stored on a single standard carousel.
How we keep your
Automated Storage & Retrieval
Project on Track
01
Consultation & Estimating
With Automated Storage & Retrieval a typical project starts with review of workflow process, time study, space and handling challenges identified with a push to develop a concept for the quoting process. It’s critical to the implementation process to fully identify problem areas and how the Automated Equipment will improve the operation.
02
Understanding ROI, Submitting Capital Expense and Ordering Equipment
The final steps in the quoting phase are fully understanding the Return of Investment which often, we see 24 months or less, getting through the investment phase and to the point where the investment is making you money. Lead times for specific equipment can sometimes be lengthy, but we see many other steps have to happen ahead of the new equipment arrival.
03
Mechanical Installation, Electrical, Software and Testing
MWS has the experience to quickly advance through the mechanical installation phase and manage the rest of the implementation requirements like Electrical & Software. All project proposals will include a complete turnkey project with sign off acceptance essential to having success and handing off the equipment for full ownership.
One Of Our Preferred Automated Storage Equipment Partners
As a global material handling company, Vidir Solutions designs and manufactures industry-leading vertical automated storage and retrieval systems. Our versatile line of motorized storage carousels and display systems is trusted by industries ranging from construction, retail, and medical to warehouse, government, automotive, printing, and manufacturing.
Automated Storage FAQ’S
How do I justify the investment costs of automation?
We will consult with your team and fully understand all aspects of your storage and picking operation. You justify the equipment purchase by fully understanding the ROI and when that equipment starts making you money.
Is there a lot of maintenance required?
There is often minimal routine maintenance required, along with good housekeeping practices to ensure your equipment stays operational. MWS will identify daily responsibilities and offer a preventative maintenance plan aligned with the suggested service rate requirements.
What software is available, and will it work with our system?
For most automation equipment sold today, there are options ranging from basic to full inventory management systems—sold with the equipment to support the defined processes. Software can often be upgraded, and different warehouse management processes can be added.
